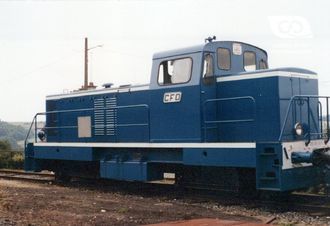

These locomotives were designed by CFD but manufactured by Fives-Lille. The transmission consists of a Ferodo coupler, a CFD Asynchro gearbox connected to the two reversing axles on each truck.
The axle carrying the reversing axle is connected by connecting rods to the second axle of the bogie. The SNCF chose this machine following comparative tests between the BB60001 and a diesel-electric machine with the same engine showing that the Asynchro gearbox allowed, with identical diesel, higher performances for 20% lower consumption.
| Features | Values |
| Total weight | 55 tons |
| Longueur | 11850 |
| Bogie pivot spacing | 5600 |
| Axle width of a bogie | 2000 |
| Wheel diameter | 860 |
| Maximum speed | 80 km/h |
| Hookload on startup | 16.3 tons |
| Diesel Poyaud A12150 S | 470 kw |
| Speed box | CFD | sync
De-archiving in progress

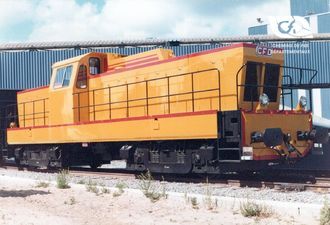

These bogie locomotives with 600 to 900 horsepower are equipped with a CFD po...
These BB locomotives are powered by two 720-horsepower diesel engines, each d...
These twin-cab BB locomotives are equipped with a 1500 horsepower diesel engi...

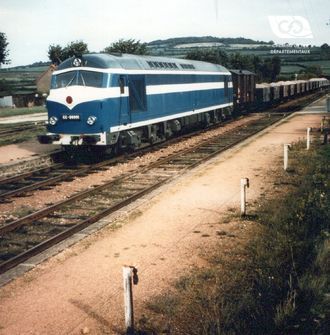

Locomotive CC 80001 is equipped with two 1550-horsepower diesel engines and t...

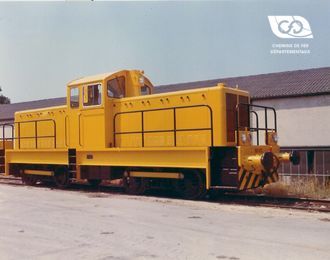

The BB 600 locomotives are twin-engine machines with 2 Asynchro gearboxes tha...
Locomotives designed by CFD Industrie for the Scheuchzer company and built by...

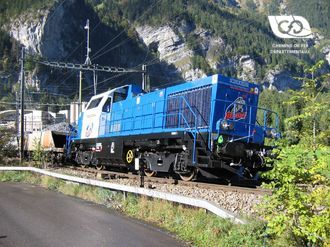

BB CFD locomotive equipped with an 1800 horsepower MTU engine, Voith transmis...

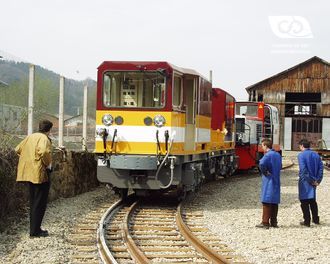

The 14 TME (Tractor with Electric Power) supplied by CFD Bagnères to the RAT...

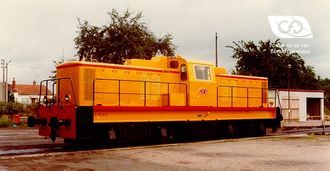

Locomotive BB 432 was the first CFD locomotive with an asynchronous gearbox t...
Twin locomotive equipped with two Asynchro gearboxes that drive the reversing...

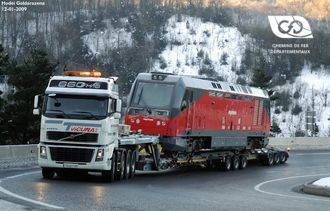

Locomotive in metric track, dual mode, made for the Euskotren network by CFD ...
Single-engine locomotive equipped with a torque converter and an Asynchro gea...

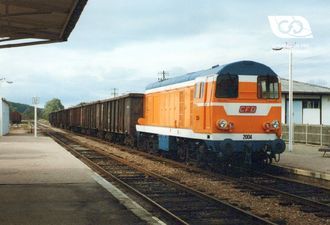

These locomotives manufactured by English Electric were purchased by CFD in E...

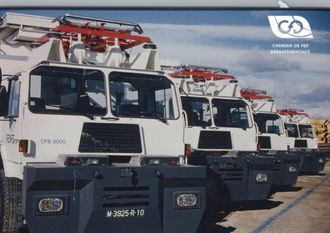

Road-rail vehicle equipped with a traction chain for travelling on the road a...
